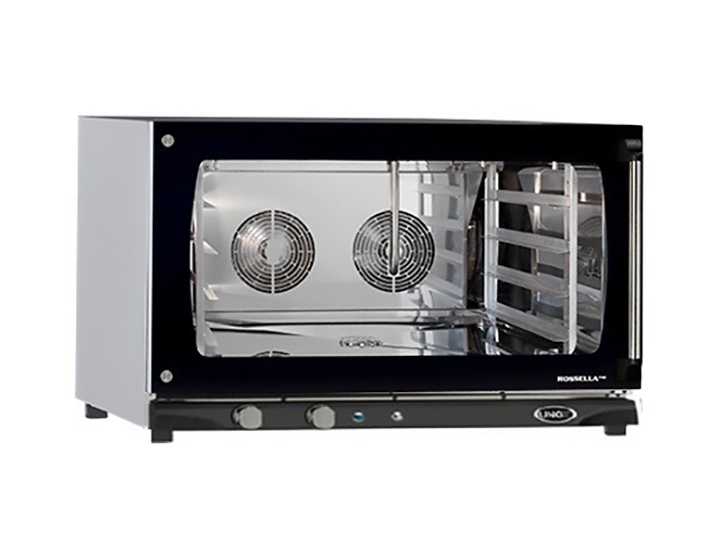

UNOX-Manual Control Oven with Steam Function - 4 Trays (60x40 cm) - XFT197
✅ Key Features:
Cooking temperature range: 80°C to 260°C
STEAM.Plus: instant humidity injection
AIR.Plus: multiple reverse fans for even airflow
DRY.Plus: removes moisture from cooking chamber
Double glass door with integrated LED lighting
High-resistance stainless steel (AISI 304) chamber
Suitable for fresh and frozen bakery products
2-speed fan system for uniform baking results
⚙️ Technical Specifications:
Voltage options: 380–415V (3PH) or 220–240V (1PH or 3PH)
Frequency: 50 / 60 Hz
Power: 6.5 kW
Tray spacing: 75 mm
Net weight: 49 kg
Dimensions: 800 × 774 × 509 mm
Plug not included – hardwired installation required
💧 Water Connection Requirements:
Inlet: 3/4” NPT
Pressure: 1.5 – 6 Bar (2 Bar recommended)
Requires water filtration to prevent limescale and preserve warranty
| Brand | |
|---|---|
| Brand | UNOX |
| GENERAL INFORMATIONS | |
| Country of Origin | ITALY |
| ELECTRICITY | |
| Voltage (V) | 230-400/50-60/1-3 |
| Electricity Power (KW) | 6.5 |
| DIMENSIONS | |
| Dimensions | 800X774X509mm. |
| Uncategorized | |
| Weight (KG) | 49 |
| Number of Trays | 4 Tray 60X40 |
